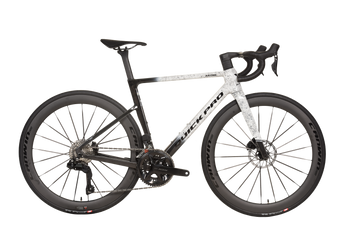

AR:ONE - Aero/All-round

Through advanced carbon engineering and optimized layup techniques, the AR:ONE’s head tube, bottom bracket, and down tube deliver exceptional lateral and torsional stiffness—maximizing pedaling efficiency and ensuring that every watt is transferred directly to the road. Yet true frame design extends beyond pure power transfer. Alongside drivetrain efficiency, a performance road frame must account for variable road surfaces and rider comfort. To achieve this balance, our engineers have integrated nanotechnology with compliant fiber layers, increasing load capacity and impact resistance while attenuating high-frequency road vibrations. The result is a frameset that combines race-level responsiveness with all-day ride quality.

Key Features

Monolith Technology
Monolith Technology
By forming the main triangle and rear stays in a single mold process, the frame drastically reduces joints and bonding points, resulting in enhanced stiffness, strength, and structural integrity.
Advanced Materials
Advanced Materials
Built with premium Toray T1100 and M56 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.
Ultra-Light Integrated Handlebar
Ultra-Light Integrated Handlebar
Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

FRAME
Size Options
XS/430, SM/460, MD/490, LG/520, XL/550, 2X/580
Frameset
T1100 & M65 Modulus Carbon, Monolith One PIece Construction (799g)
Fork
T1100 Optimized for climbing and descending (399g)
BRAKES
Front Brake
SRAM Force AXS E1
Rear Brake
SRAM Force AXS E1
Brake Rotors
SRAM Paceline CL A2 (160mm Front/140mm Rear)
DRIVETRAIN
Shift Levers
SRAM Force AXS E1
Front Derailleur
SRAM Force AXS E1
Rear Derailleur
SRAM Force AXS E1
Cassette
SRAM Force XDR 10/36T
Chain
SRAM Force AXS E1
Crankset/Chainrings
SRAM Force AXS E1 170/172.5mm length options & 50/37 chainrings
Bottom Bracket
QuickPro/SSpade Stainless Steel BSA/68mm

Size & Fit

Ref Specification XS / 430 S / 460 M / 490 L / 520 XL / 550 XXL / 580
A Frame Size / Seat Tube Length (mm) 430 460 490 520 550 580
B Effective Top Tube Length (mm) 510 525 540 555 570 589
C Seat Tube Angle (°) 75.0 74.5 74.0 73.5 73.5 73.5
D Head Tube Angle (°) 70.0 71.0 72.0 73.0 73.0 73.5
E Head Tube Length (mm) 105 115 130 145 160 180
F Chainstay Length (mm) 408 408 408 408 408 408
G Wheelbase (mm) 982 984.5 986 987 1002 1013.7
H Fork Offset / Rake (mm) 50 50 45 45 45 45
I Bottom Bracket Drop (mm) 71.65 71.65 71.65 71.65 71.65 71.65
J Fork Length (mm) 370 370 370 370 370 370
K Standover Height (mm) 710.5 736 761.5 787 812.5 837
Stack-to-Reach Ratio (STR) 1.34 1.35 1.38 1.41 1.41 1.42
Reach (mm) 375.37 382.17 386.71 391.4 402 412.3
Stack (mm) 503.9 516.73 534.57 552 566.6 587.7
