Configure 1:
SHIMANO XT、ROCK SHOX REBA RL Fork、ROCK SHOX SID S+、CANWIN XC Alloy Wheelset
Configure 2:
SHIMANO XT、ROCK SHOX REBA RL Fork、ROCK SHOX SID S+、CANWIN XC Carbon Wheelset
Configure 3:
SRAM S1000、ROCK SHOX REBA RL Fork、ROCK SHOX SID S+Shock、CANWIN XC Alloy Wheelset
Configure 4:
SRAM GX、SHOX SID ULT Fork、ROCK SHOX SID UL3 Shock、CANWIN XC Carbon Wheelset
Configure 5:
SRAM XX、ÖLINS RXC34M1 Fork、OLINS TXCM1 Shock、CANWIN XC Carbon Wheelset

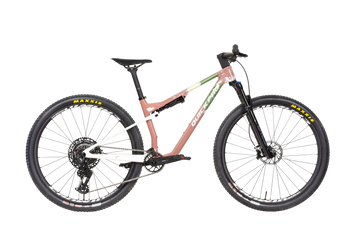

The Quick Pro DEFT is crafted for riders who demand precision, agility, and uncompromising performance. Engineered with a lightweight carbon frame and optimized race geometry, DEFT delivers explosive acceleration and razor-sharp handling on every climb and corner. Its aerodynamic shaping slices through the wind, while balanced stiffness and compliance ensure efficiency without sacrificing comfort. Whether you’re sprinting for the finish or mastering technical terrain, DEFT embodies the perfect harmony of power and control — speed, refined.
| Code | Description | XS / 390 | S / 400 | M / 410 | L / 440 |
|---|---|---|---|---|---|
| A | Size / ST Length (mm) | 390 | 400 | 410 | 440 |
| B | Virtual TT (mm) | 553 | 579 | 605 | 633 |
| C | ST Angle (°) | 75.5° | 75.5° | 75.5° | 75.5° |
| D | HT Angle (°) | 66° | 66° | 66° | 66° |
| E | HT Length (mm) | 90 | 90 | 95 | 110 |
| F | RC Length (mm) | 435 | 435 | 435 | 435 |
| G | Wheel Base (mm) | 1125 | 1150 | 1177 | 1213 |
| I | BB Drop (mm) | 45 | 45 | 45 | 45 |
| J | Fork Length (mm) | 530 | 530 | 530 | 530 |
| — | Reach (mm) | 400 | 425 | 450 | 475 |
| — | Stack (mm) | 594 | 594 | 599 | 613 |
