ZEIT PRO FRAME

Regular price $1,989.00 CAD
Sale price $1,989.00 CAD Regular price
Unit price

Customize Frame
ZEIT PRO FRAME

ZEIT PRO FRAME

ZEIT PRO - Performance/Comfort

EPS inner mandrel technology is employed to ensure the internal carbon walls remain smooth, eliminating voids, bubbles, and the risk of delamination. Each layup pattern is extensively validated, placing the right carbon fibers in critical stress zones for maximum efficiency. By incorporating T1000 and M60 high-spec carbon fibers, the frame achieves exceptional stiffness-to-weight performance. Complemented by a geometry engineered for a wide range of riders, the result is a frameset that delivers both precision handling and race-ready efficiency.

Key Features

−

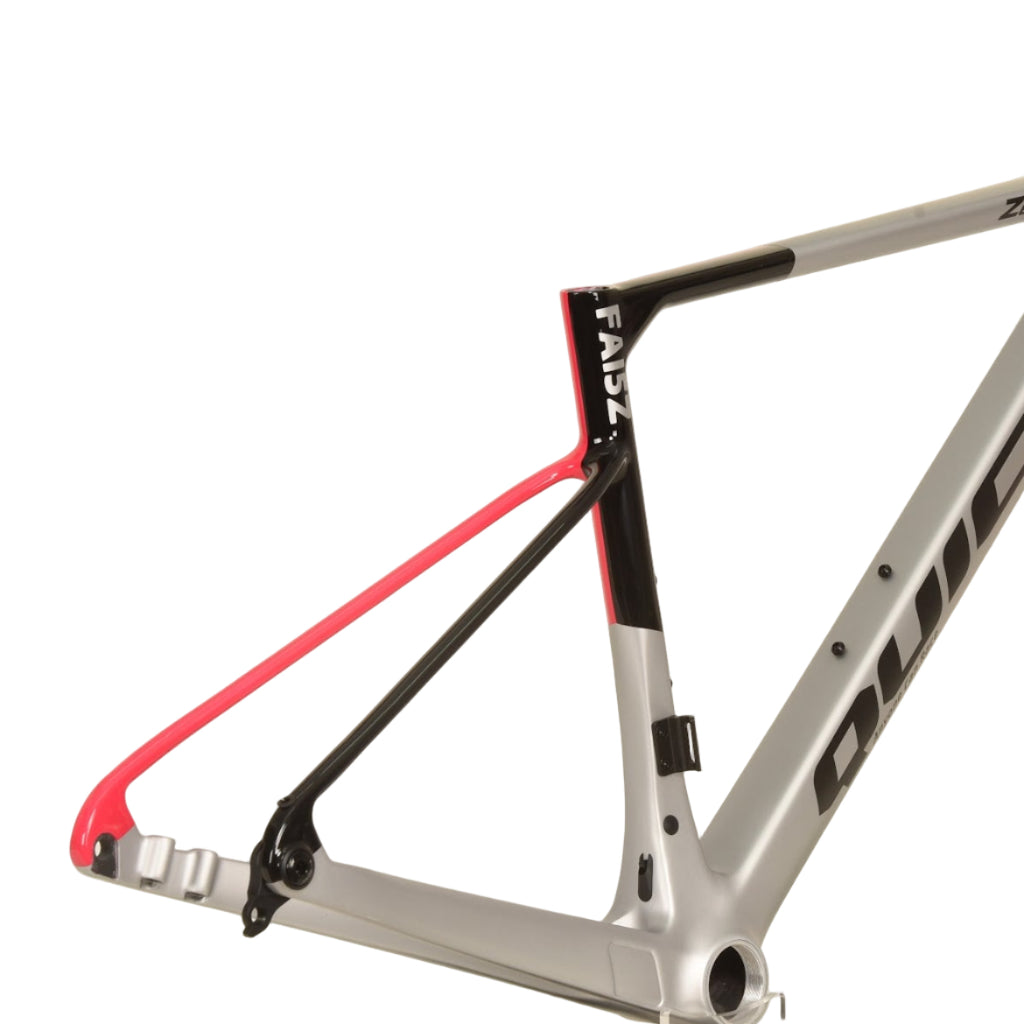

Performance Meets Comfort
Performance Meets Comfort
Engineered for riders who demand both speed and endurance

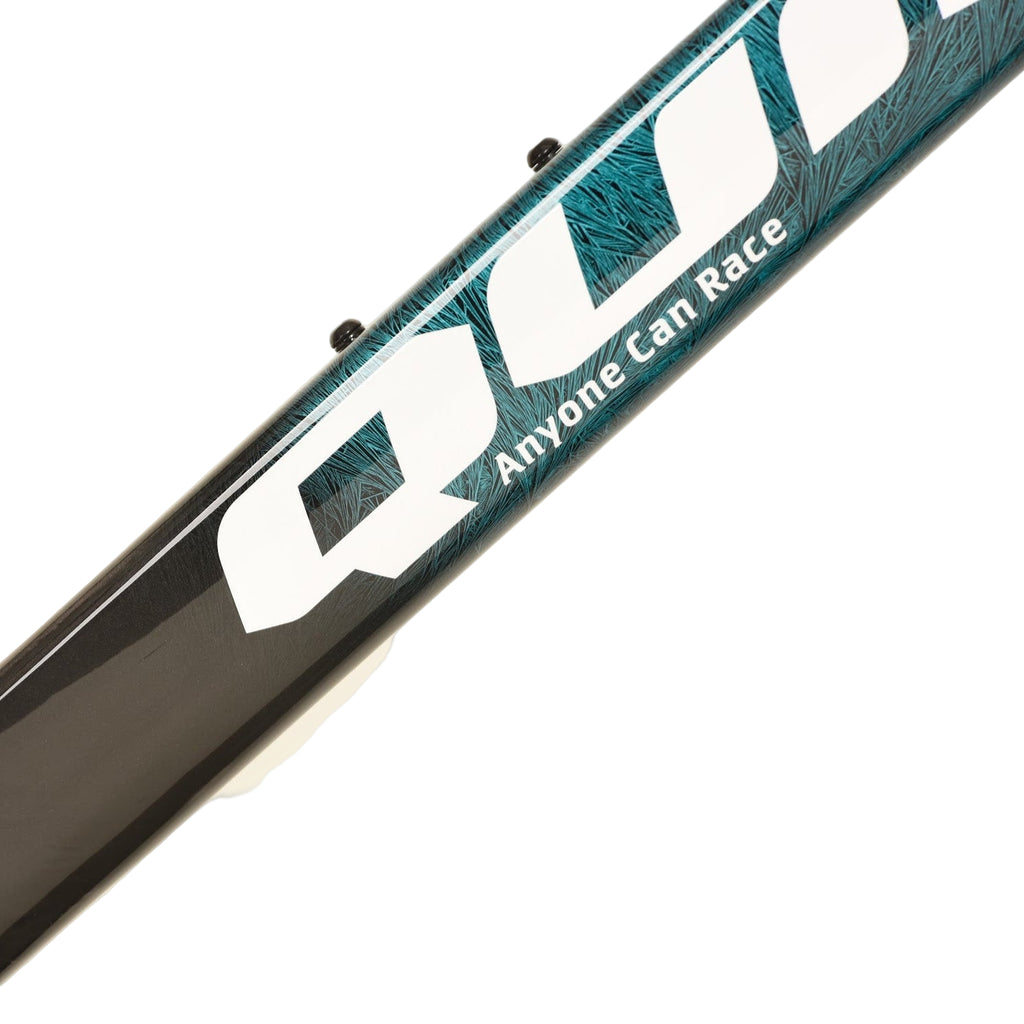

Advanced Materials
Advanced Materials
Built with Toray T1000 and M60 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.
Ultra-Light Integrated Handlebar
Ultra-Light Integrated Handlebar
Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

−
Model
  • ZEIT PRO
Material
  • T1000 & M60
Headset
  • 52 x 52 mm
BB
  • T47-85.5
Thru-axle
  • F/ 100×12mm R/ 142×12mm
Tire (Max.)
  • 700×32c
Brakes
  • Flat-mount
Weight
  • Frame/909g±5% Fork/409g±5%
Wheels
  • CANWIN RC50 or F50C
Inner Tube
  • 700 x 28c
Saddle
  • SAMASSI 3D Print Saddle
Handlebar
  • CANWIN ZEPHYR SL

Size & Fit

−

Label Specification 430 460 490 520 550
A Size / ST Length (mm) 430 460 490 520 550
B Virtual TT (mm) 516 530 546 560 580
C ST Angle (°) 74.8° 74.3° 73.9° 73.5° 73°
D HT Angle (°) 70.8° 71.7° 72° 73° 73°
E HT Length (mm) 120 138 157 172.6 195
F RC Length (mm) 415 415 415 415 415
G Wheel Base (mm) 986.1 987.8 998.6 999.4 1012.9
H Fork Rake (mm) 45 45 45 45 45
I BB Drop (mm) 75 75 73 73 73
J Fork Length (mm) 380 380 380 380 380
K Standover (mm) 698.8 725.5 760 789 812
Reach (mm) 370.8 374.2 380.8 385 392.9
Stack (mm) 532.8 553.1 571.2 589.3 610.6
