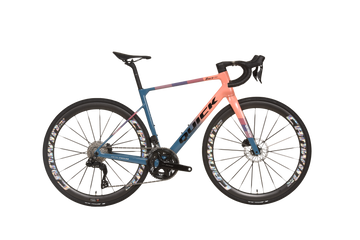

ZEIT PRO GEN 2 ULTEGRA Di2

Regular price $5,257.00 CAD
Sale price $5,257.00 CAD Regular price $3,836.00 CAD
Unit price

Customize Frame
ZEIT PRO GEN 2 ULTEGRA Di2

ZEIT PRO GEN 2 ULTEGRA Di2

ZEIT PRO - Performance/Comfort

EPS inner mandrel technology is employed to ensure the internal carbon walls remain smooth, eliminating voids, bubbles, and the risk of delamination. Each layup pattern is extensively validated, placing the right carbon fibers in critical stress zones for maximum efficiency. By incorporating T1000 and M60 high-spec carbon fibers, the frame achieves exceptional stiffness-to-weight performance. Complemented by a geometry engineered for a wide range of riders, the result is a frameset that delivers both precision handling and race-ready efficiency.

Key Features

−
Performance Meets Comfort
Performance Meets Comfort
Engineered for riders who demand both speed and endurance
Advanced Materials
Advanced Materials
Built with Toray T1000 and M60 high-grade carbon fibers, the frame has exceptional stiffness and responsiveness.
Ultra-Light Integrated Handlebar
Ultra-Light Integrated Handlebar
Engineered for exceptional stiffness and precision handling — giving you total control in every corner.

Key Specifications

−
FRAME
Size Options
XS/430, SM/460, MD/490, LG/520, XL/550, 2X/584
Frameset
T1100 & M65 Modulus Carbon, Monolith One PIece Construction (840g)
Fork
NARROW option for lighter weight & improved handling (-25g) or WIDE option fork for optimized aerodynamics
BRAKES
Front Brake
Shimano BR-R8170
Rear Brake
Shimano BR-R8170
Brake Rotors
RT-CL800 (160mm Front/140mm Rear)
DRIVETRAIN
Shift Levers
Shimano ST-R8170
Front Derailleur
Shimano FD-R8150
Shimano 105 Di2: Shimano BR-R7170
Shimano Ultegra Di2: Shimano BR-R8170
Rear Derailleur
Shimano RD-R8150
Cassette
Shimano CS-R8101-12 (11/34T)
Chain
Shimano CN-M8100
Crankset/Chainrings
Shimano FC-R8100 165/170mm length options & 50/34 or 52/36 chainrings
Bottom Bracket
QuickPro/SSpade Stainless Steel T47/68mm

Size & Fit

−

Label Specification 430 460 490 520 550
A Size / ST Length (mm) 430 460 490 520 550
B Virtual TT (mm) 516 530 546 560 580
C ST Angle (°) 74.8° 74.3° 73.9° 73.5° 73°
D HT Angle (°) 70.8° 71.7° 72° 73° 73°
E HT Length (mm) 120 138 157 172.6 195
F RC Length (mm) 415 415 415 415 415
G Wheel Base (mm) 986.1 987.8 998.6 999.4 1012.9
H Fork Rake (mm) 45 45 45 45 45
I BB Drop (mm) 75 75 73 73 73
J Fork Length (mm) 380 380 380 380 380
K Standover (mm) 698.8 725.5 760 789 812
Reach (mm) 370.8 374.2 380.8 385 392.9
Stack (mm) 532.8 553.1 571.2 589.3 610.6
